Installation¶

Minimum System Requirements¶

Melody and Kronos have been tested on Ubuntu 16.04.5 LTS. Kronos uses a modified linux kernel v4.4.50 patch. The system should consist of an Intel i5 or later processor with atleast 4 cores and 8 GB of RAM for good performance. It is preferable to install Kronos and Melody inside a VM with Virtualized Intel-VTx and CPU performance counters. This is known to avoid display driver issues on newer laptops/machines.

VMware Virtual Machine Settings Screenshot

Virtualization Settings required for virtual machine in VMware.

Installtion assumes default python on the system is version 3.6 or higher.

Installing Kronos¶

To get started on Kronos, please perform the following setup steps:

Disable Transparent HugePages: (Add the following to /etc/rc.local to permanently disable them):

if test -f /sys/kernel/mm/transparent_hugepage/enabled; then
  echo never > /sys/kernel/mm/transparent_hugepage/enabled
fi
if test -f /sys/kernel/mm/transparent_hugepage/defrag; then
  echo never > /sys/kernel/mm/transparent_hugepage/defrag
fi

Ensure that /etc/rc.local has execute permissions:
```
sudo chmod +x /etc/rc.local
```
Clone Repository into /home/${user} directory. Checkout the master branch (v1.2):
```
git clone https://github.com/Vignesh2208/Kronos.git
```
Compile and configure Kronos kernel patch:
```
cd ~/Kronos
sudo make setup_kernel
```
During the setup process do not allow kexec tools to handle kernel reboots. Over the course of kernel setup, a menu config would appear.

The following additional config steps should also be performed inside menuconfig:

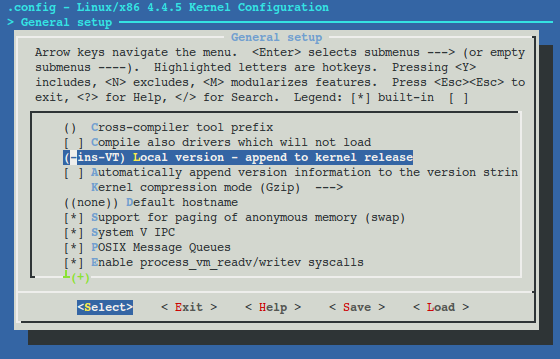

1. Under General setup

  –> Append a local kernel version name. (e.g it could be “-ins-VT”)

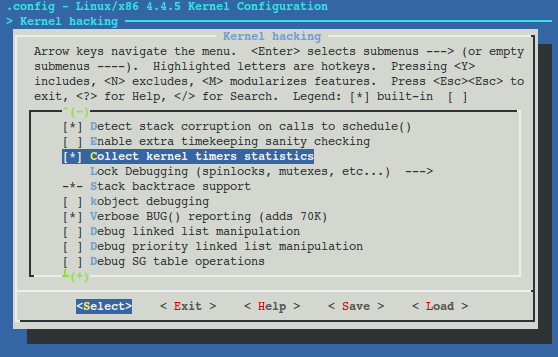

2. Under kernel_hacking

  –> enable Collect kernel timers statistics
3. Under Processor types and features

  –> Transparent Huge Page support

  –> Transparent Huge Page support sysfs defaults should be set to always
Reboot the machine and into the new kernel (identifiable by the appended local kernel version name in the previous step)
Build and load Kronos module:
```
cd ~/Kronos
sudo make build load
```

Verifying Installation¶

The following tests (optional) can be run to verify the Kronos installation:

INS-SCHED specific test:

cd ~/Kronos/src/tracer/tests
sudo make run_repeatability_test

Kronos integration tests:
```
cd ~/Kronos/test
sudo make run
```

All of the above tests should print a SUCCESS message.

Loading Kronos¶

Inorder to use Kronos, it must be loaded after being built and after each VM/machine reboot. It can be loaded with the following command:

cd ~/Kronos
sudo make load

Installing Melody¶

Melody depends on the following packages and tools:

python-httplib2
python-ryu
numpy
pypcapfile
openssh-server
dpkt
mininet
openvswitch-2.4.0
protobuf && protoc version >= 3.7
grpcio and grpcio tools
Kronos
Matpower

It may be installed before/after Kronos installation. Please follow the steps given below to download and install melody and its dependencies. It is preferable to install Melody in the /home/${user} directory:

cd ~/
git clone https://github.com/Vignesh2208/Melody.git
cd ~/Melody
sudo ./install_deps.sh
sudo python setup.py install

Melody Post-Installation Steps¶

Setting up python path:

# Add the following to ~/.bashrc
export PYTHONPATH="${PYTHONPATH}:<path-to-melody>"
export PYTHONPATH="${PYTHONPATH}:<path-to-melody>/src"
export PYTHONPATH="${PYTHONPATH}:/home/kronos/Melody/srcs/proto"


# Update .bashrc
source ~/.bashrc

# Do the following
sudo visudo

# Append this line
Defaults env_keep += "PYTHONPATH"

Install Matpower by following instructions listed `here`_.

Note that it is recommended to install the development version of Matpower by cloning from the github repository, and then run the install_matpower script using Octave. When prompted to select from the MATPOWER Installation Options, choose the following:

DO modify the Octave path, and SAVE the updated path

(so you will not have to do it again next time you run Octave)

Install protoc (optional) by following these instructions. Protoc can be used for development if the defined protos are to be changed and compiled. Use version >= 3.7.

After installation of Melody, please reboot the VM/machine

Ready to use VM¶

Link to a ready to use Kronos VM (version 1.3) can be downloaded from here. The VM also contains installations of companion projects OpenSCADA and Melody. which use Kronos for cyber-physical system modelling.

Username: kronos Password: kronos

Make sure Kronos is loaded after each reboot before running experiments which use it:

cd ~/Kronos
sudo make load
